Product Summary

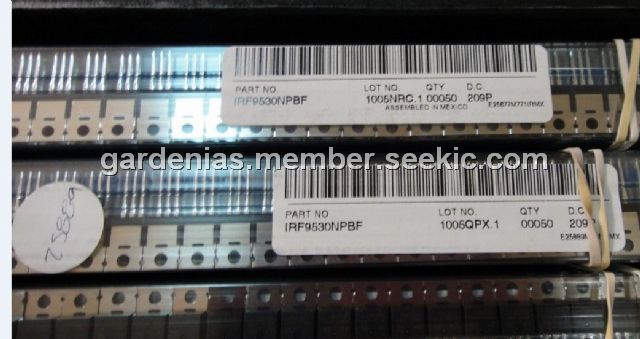

The IRF9530NPBF is an International Rectifier. It utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts.
Parametrics
IRF9530NPBF absolute maximum ratings: (1)ID @TC=25℃, continuous drain current: -14A; (2)ID @TC=100℃, continuous drain current: -10A; (3)IDM, pulsed drain current: -56A; (4)power dissipation: 79W; (5)linear derating factor: 0.53W/℃; (6)gate-to-source voltage: ±20V; (7)avalanche current: -8.4A.
Features
IRF9530NPBF features: (1)Advanced Process Technology; (2)Dynamic dv/dt Rating; (3)175°C Operating Temperature; (4)Fast Switching; (5)P-Channel; (6)Fully Avalanche Rated.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() IRF9530NPBF |
![]() International Rectifier |
![]() MOSFET MOSFT PCh -100V -14A 200mOhm 38.7nC |
![]() Data Sheet |
![]()
|
|
||||||||||||
