Product Summary

The EPF81188AQC208-3N is a pogrammable logic device. It is ideal for a variety of applications because it combines the fine-grained architecture and high register count characteristics of FPGAs with the high speed and predictable interconnect delays of EPLDs. Logic is implemented in LEs that include compact 4-input look-up tables (LUTs) and programmable registers. The EPF81188AQC208-3N provides high performance by a fast, continuous network of routing resources.

Parametrics

EPF81188AQC208-3N absolute maximum ratings: (1)supply voltage: 7V; (2)DC input voltage: 7V; (3)DC output current, per pin: 25mA; (4)storage temperature: -65 to 150℃; (5)ambient temperature: -85 to 135℃; (6)junction temperature: 150℃.

Features

EPF81188AQC208-3N features: (1)system-level features; (2)in-circuit reconfigurability via external configuration EPROM or intelligent controller; (3)fully compliant with the peripheral component interconnect standard; (4)powerful I/O pins; (5)flexible interconnect.

Diagrams

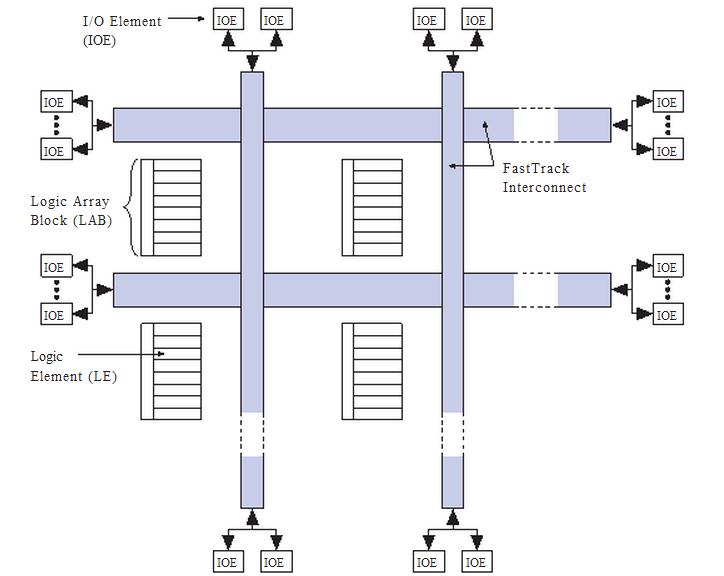

EPF81188AQC208-3N block diagram
