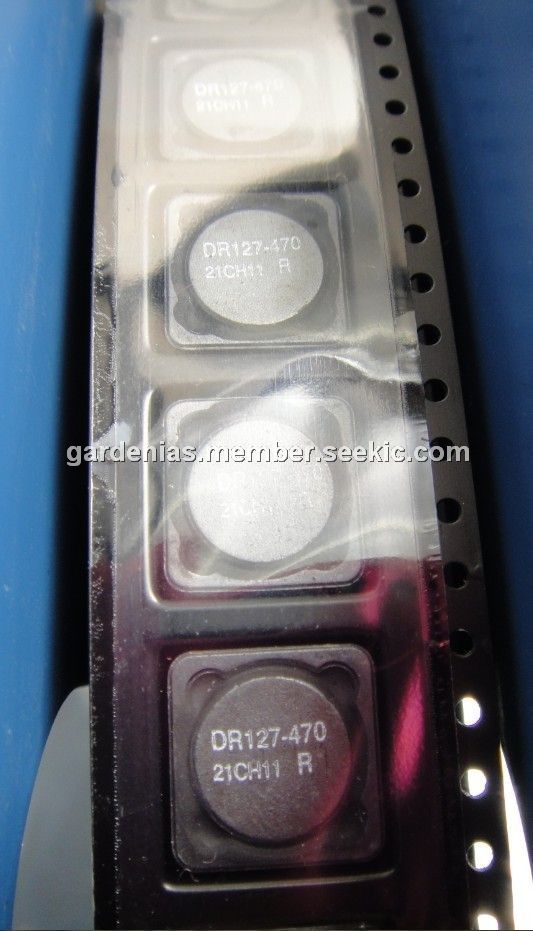

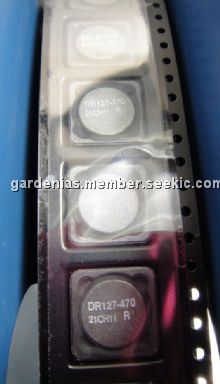

Product Summary

The DR127-470 is a high power density, high efficiency, shielded inductor. Its applications include Computer, DVD players, and portable power devices, LCD panels, DC-DC converters, Buck, boost, forward, and resonant converters, Noise filtering and filter chokes.

Parametrics

DR127-470 absolute maximum ratings: (1)Storage temperature range: -40°C to +125°C; (2)Operating temperature range: -40°C to +125°C (range is application specific); (3) Solder reflow temperature: +260°C max. for 10 seconds max.

Features

DR127-470 features: (1)125°C maximum total operating temperature; (2)Four sizes of shielded drum core inductors; (3)Inductance range from 0.33μH to 1000μH; (4)Current range up to 56 amps peak; (5)Magnetic shielding; (6)Secure mounting; (7)Ferrite core material.

Diagrams

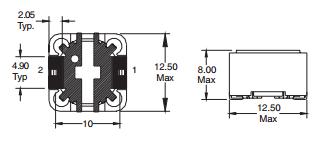

DR127-470 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DR127-470-R
DR127-470-R
Cooper Bussmann
Power Inductors 47uH 5.28A 0.0719ohms
Data Sheet
0-1: $1.19
1-50: $0.94
50-100: $0.82
100-350: $0.82
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DR127-470-R
DR127-470-R
Cooper Bussmann
Power Inductors 47uH 5.28A 0.0719ohms
Data Sheet
0-1: $1.19
1-50: $0.94
50-100: $0.82
100-350: $0.82
DR127-680-R
DR127-680-R
Cooper Bussmann
Power Inductors 68uH 4.44A 0.105ohms
Data Sheet
0-1: $1.19
1-50: $0.94
50-100: $0.82
100-350: $0.82
DR125-560-R
DR125-560-R
Cooper Bussmann
Power Inductors SHLD DRMSNGL CONDCT
Data Sheet
0-1: $1.12
1-10: $1.04
10-100: $0.79
100-250: $0.76
DR125-180-R
DR125-180-R
Cooper Bussmann
Power Inductors SHLD DRMSNGL CONDCT
Data Sheet
0-1: $1.12
1-10: $1.04
10-100: $0.79
100-250: $0.76
DR125-3R3-R
DR125-3R3-R
Cooper Bussmann
Power Inductors 3.3uH 12.7A 0.0063ohms
Data Sheet
0-1: $1.12
1-50: $0.96
50-100: $0.79
100-500: $0.72
500-600: $0.72
DR125-101-R
DR125-101-R
Cooper Bussmann
Power Inductors 100uH 2.2A 0.17ohms
Data Sheet
0-1: $1.12
1-50: $0.96
50-100: $0.79
100-500: $0.72
500-600: $0.72
