Product Summary

The BTS4880R is a Smart Power High-Side-Switch. It is applicated for output driver for industry, and all types of resistive, inductive and capacitive loads. In addition, the BTS4880R is applicated for µC or optocoupler compatible power switch for 24 V DC and replaces electromechanical relays and discrete circuits.

Parametrics

BTS4880R absolute maximum ratings: (1)Reverse battery voltage(RGND = 0 Ω): 1 V; (2)Reverse battery voltage(RGND = 150 Ω): 45 V; (3)Diode forward on voltage: 1.2 V; (4)Off state input current CMOS: 8 μA; (5)Input delay time at switch on Vbb: μs; (6)Internal pull down resistor: 300 kΩ.

Features

BTS4880R features: (1)Output current 0,625 A per channel; (2)Short circuit protection; (3)Maximum current internally limited; (4)Overload protection; (5)Input protection; (6)Overvoltage protection (including load dump); (7)Undervoltage shutdown with autorestart and hysteresis; (8)Switching inductive loads.

Diagrams

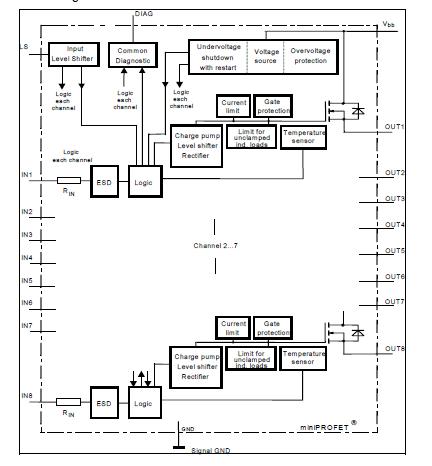

BTS4880R pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

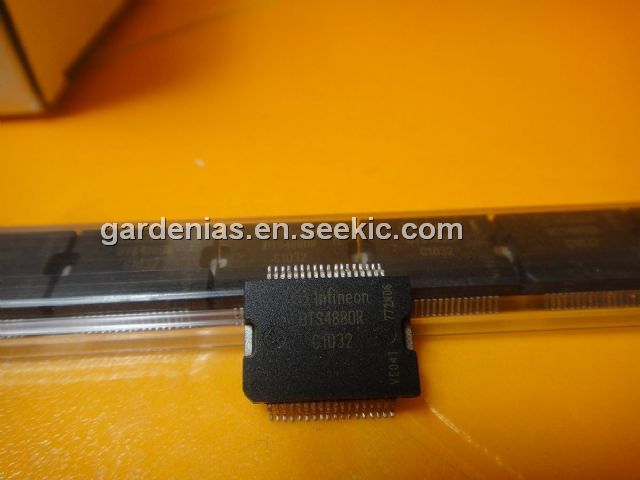

BTS4880R
BTS4880R

Infineon Technologies

Power Switch ICs - POE / LAN 200mOhms

Data Sheet

0-433: $4.04
433-500: $3.39
500-800: $3.39
800-1000: $2.95
