Product Summary

The BAT54 is a schottky barrier diode.

Parametrics

BAT54 absolute maximum ratings: (1)continuous reverse voltage: 30V; (2)Forward current: 0.3A; (3)Non-repetitive peak forward current: 1mA; (4)total power dissipation: 250mW; (5)storage temperature range: -55 to 150℃; (6)junction temperature: 150℃; (7)soldering temperature: 260℃.

Features

BAT54 features: (1)Low Forward Voltage; (2)Surface Mount device; (3)Very small conduction losses.

Diagrams

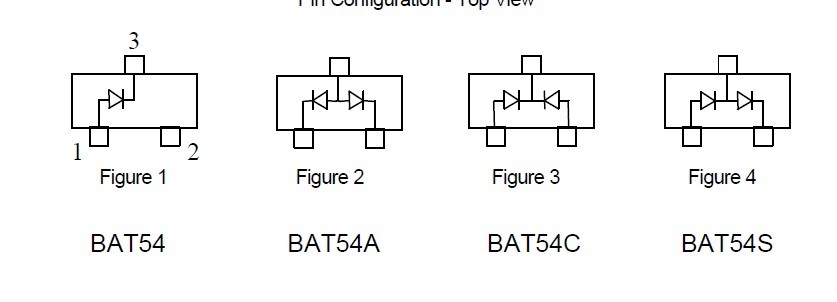

BAT54 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BAT54
BAT54
Fairchild Semiconductor
Schottky (Diodes & Rectifiers) SOT-23 30V 200mA
Data Sheet
0-1: $0.10
1-25: $0.09
25-100: $0.06
100-250: $0.03
