Product Summary

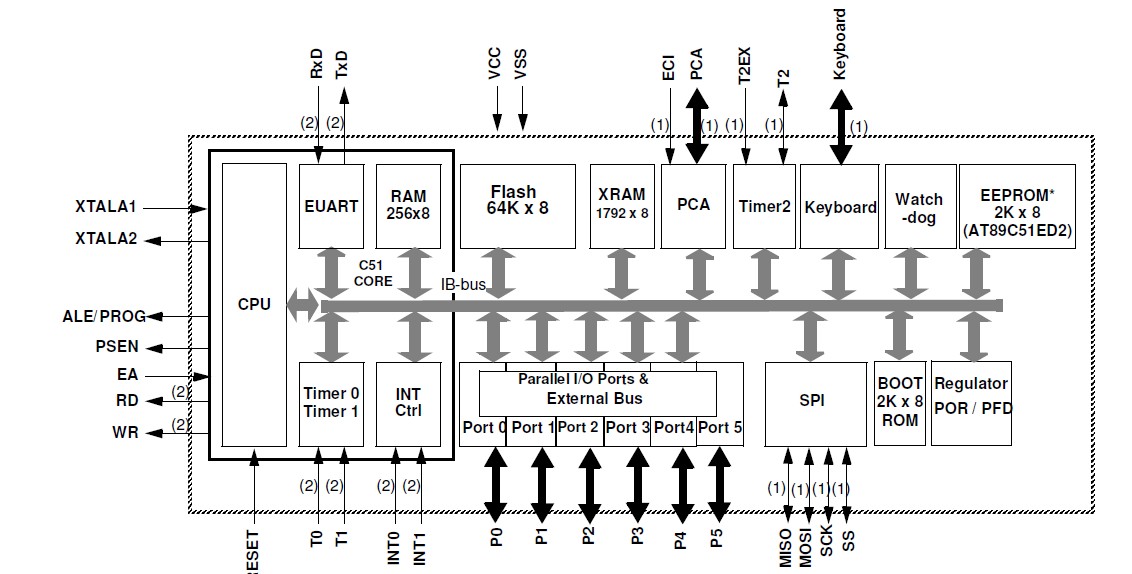

The AT89C51ED2-SLSIM is an 80C51 CMOS single chip 8-bit microcontroller. It is high performance CMOS Flash version of the 80C51 CMOS single chip 8-bit microcontroller. It contains a 64-Kbyte Flash memory block for code and for data. The AT89C51ED2-SLSIM can be programmed either in parallel mode or in serial mode with the ISP capability or with software. The programming voltage is internally generated from the standard VCC pin. The AT89C51RD2/ED2 retains all of the features of the Atmel 80C52 with 256 bytes of internal RAM, a 9-source 4-level interrupt controller and three timer/counters. The AT89C51ED2 provides 2048 bytes of EEPROM for nonvolatile data storage. In addition, the AT89C51RD2/ED2 has a Programmable Counter Array, an XRAM of 1792 bytes, a Hardware Watchdog Timer, SPI interface, Keyboard, a more versatile serial channel that facilitates multiprocessor communication (EUART) and a speed improvement mechanism (X2 Mode).

Parametrics

AT89C51ED2-SLSIM absolute maximum ratings: (1)industrial: -40 to 85℃; (2)storage temperature: -65 to 150℃; (3)voltage on VCC to VSS: -0.5 to 6.5V; (4)Vvoltage on any pin to VSS: -0.5 to VCC + 0.5V; (5)Power dissipation: 1W.

Features

AT89C51ED2-SLSIM features: (1)80C52 Compatible; (2)8051 Instruction Compatible; (3)Six 8-bit I/O Ports (64 Pins or 68 Pins Versions); (4)Four 8-bit I/O Ports (44 Pins Version); (5)Three 16-bit Timer/Counters; (6)256 Bytes Scratch Pad RAM; (7)9 Interrupt Sources with 4 Priority Levels.
