Product Summary

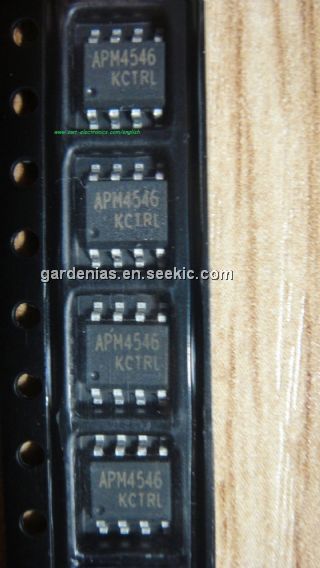

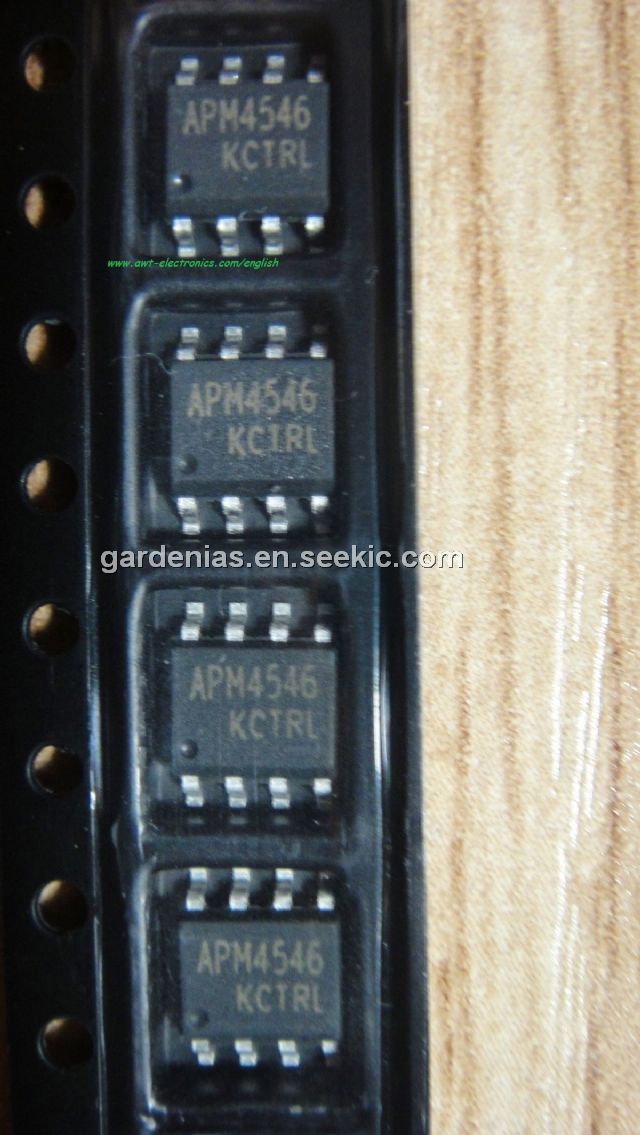

The APM4546KC-TRL is a dual enhancement mode MOSFET. Its applications include power management in notebook computer, portable equipment and battery powered systems.

Parametrics

APM4546KC-TRL absolute maximum ratings: (1)drain-source voltage: ±30V; (2)gate-source voltage: 20V; (3)maximum drain current-continuous: -5A; (4)maximum drain current-pulsed: 20A; (5)maximum power dissipation: 2W; (6)maximum junction temperature: 150℃.

Features

APM4546KC-TRL features: (1)super high dense cell design for extremely low R; (2)reliable and rugged; (3)SO-8 package.

Diagrams

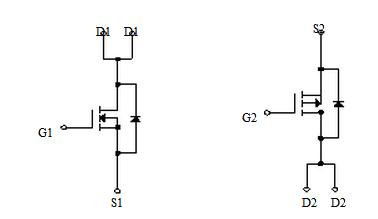

APM4546KC-TRL diagram
