Product Summary

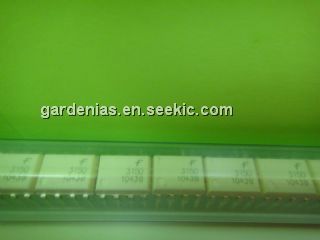

The HCPL-3150 consists of an LED optically coupled to an integrated circuit with a power output stage. This optocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices. The voltage and current supplied by this optocoupler makes it ideally suited for directly driving IGBTs with ratings up to 1200 V/50 A. For IGBTs with higher ratings, the HCPL-3150 can be used to drive a discrete power stage which drives the IGBT gate.
Features
Features
? 0.6A maximum peak output current
? 0.5 A minimum peak output current
? 15 kV/μs minimum Common Mode Rejection (CMR) at VCM = 1500 V
? 1.0 V maximum low level output voltage (VOL) eliminates need for negative gate drive
? ICC = 5 mA maximum supply current
? Under Voltage Lock-Out protection (UVLO) with hysteresis
? Wide operating VCC range: 15 to 30 volts
? 0.5 μs maximum propagation delay
? +/– 0.35 μs maximum delay between devices/channels
? Industrial temperature range: -40°C to 100°C
? HCPL-315J: channel one to channel two output isolation = 1500 Vrms/1 min.
? Safety and regulatory approval:
UL recognized (UL1577), 3750 Vrms/1 min.
IEC/EN/DIN EN 60747-5-2 approved
VIORM = 630 Vpeak (HCPL-3150 option 060 only)
VIORM = 891 Vpeak (HCPL-315J) CSA certified
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HCPL-3150 |
Avago Technologies |
Logic Output Optocouplers 0.5A IGBT Gate Drive |
Data Sheet |
|
|
||||||||||||
|
HCPL-3150#060 |
Avago Technologies |
Logic Output Optocouplers 0.5A IGBT Gate Drive |
Data Sheet |
|
|
||||||||||||
|
HCPL-3150#560 |
Avago Technologies |
Logic Output Optocouplers 0.5A IGBT Gate Drive |
Data Sheet |
|
|
||||||||||||
|
HCPL-3150#500 |
Avago Technologies |
Logic Output Optocouplers 0.5A IGBT Gate Drive |
Data Sheet |
|
|
||||||||||||
|
HCPL-3150#360 |
Avago Technologies |
Logic Output Optocouplers 0.5A IGBT Gate Drive |
Data Sheet |
|
|
||||||||||||
|
HCPL-3150#300 |
Avago Technologies |
Logic Output Optocouplers 0.5A IGBT Gate Drive |
Data Sheet |
|
|
||||||||||||
|
HCPL-3150-500E |
Avago Technologies |
Logic Output Optocouplers 0.5A IGBT Gate Drive |
Data Sheet |
|
|
||||||||||||
|
HCPL-3150-000E |
Avago Technologies |
Logic Output Optocouplers 0.5A IGBT Gate Drive |
Data Sheet |
|
|
||||||||||||
