Product Summary

The HCPL-4506 and HCPL-0466
contain a GaAsP LED while the
HCNW4506 contains an AlGaAs
LED. The LED is optically
coupled to an integrated high gain
photo detector. Minimized propa-
The connection of a 0.1 mF bypass capacitor between pins 5 and 8 is recommended.
gation delay difference between
devices make these optocouplers
excellent solutions for improving
inverter efficiency through
reduced switching dead time.
An on chip 20 kW output pull-up
resistor can be enabled by shorting
output pins 6 and 7, thus
eliminating the need for an
external pull-up resistor in
common IPM applications. Specifications
and performance plots
are given for typical IPM
applications.

Features

Performance Specified for
Common IPM Applications
over Industrial Temperature
Range: -40°C to 100°C
? Fast Maximum Propagation
Delays
tPHL = 400 ns
tPLH = 550 ns
? Minimized Pulse Width
Distortion (PWD = 450 ns)
? 15 kV/ms Minimum Common
Mode Transient Immunity at
VCM = 1500 V
? CTR > 44% at IF = 10 mA

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

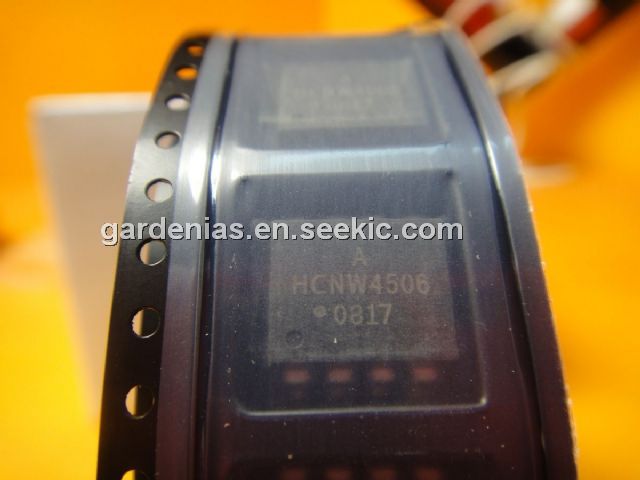

HCNW4506
HCNW4506
Avago Technologies
Logic Output Optocouplers 1Ch 12mA 145mW
Data Sheet
0-210: $1.46
210-250: $1.32
250-500: $1.24
500-1000: $1.17
HCNW4506#300
HCNW4506#300
Avago Technologies
Logic Output Optocouplers 1Ch 12mA 145mW
Data Sheet
0-210: $1.49
210-250: $1.34
250-500: $1.27
500-1000: $1.19
HCNW4506-500E
HCNW4506-500E
Avago Technologies
Logic Output Optocouplers 1Ch 12mA 145mW
Data Sheet
0-1: $2.05
1-25: $1.67
25-100: $1.49
100-250: $1.34
HCNW4506-000E
HCNW4506-000E
Avago Technologies
Logic Output Optocouplers 1Ch 12mA 145mW
Data Sheet
0-1: $2.02
1-25: $1.65
25-100: $1.46
100-250: $1.32
HCNW4506-300E
HCNW4506-300E
Avago Technologies
Logic Output Optocouplers 1Ch 12mA 145mW
Data Sheet
0-1: $2.05
1-25: $1.67
25-100: $1.49
100-250: $1.34
HCNW4506#500
HCNW4506#500
Avago Technologies
Logic Output Optocouplers 1Ch 12mA 145mW
Data Sheet
0-420: $1.34
420-500: $1.27
500-750: $1.27
750-1000: $1.19
