Product Summary

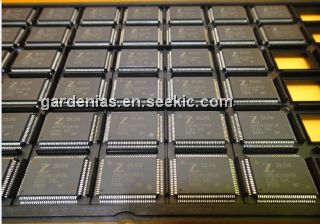

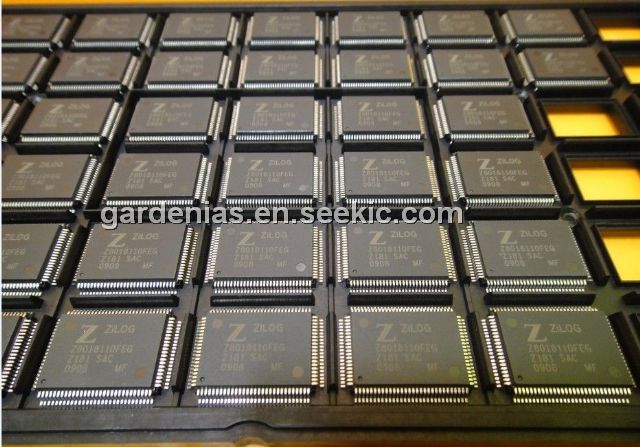

Z8018110FEC--SMART ACCESS CONTROLLER (SAC?)
Features
Z80180 Compatible MPU Core with 1 Channel of
Z85C30 SCC, Z80 CTC, Two 8-Bit General-Purpose
Parallel Ports, and Two Chip Select Signals.
High Speed Operation (10 MHz)
Low Power Consumption in Two Operating Modes:
- (TBD) mA Typ. (Run Mode)
- (TBD) mA Typ. (STOP Mode)
Wide Operational Voltage Range (5V ±10%)
TTL/CMOS Compatible
Clock Generator
One Channel of Z85C30
- Enhanced Z80 CPU Core
- Memory Management Unit (MMU) Enables Access
to 1MB of Memory
- Two Asynchronous Channels
- Two DMA Channels
- Two 16-Bit Timers
- Clocked Serial I/O Port
On-Board Z84C30 CTC
Two 8-Bit General-Purpose Parallel Ports
Memory Configurable RAM and ROM Chip Select Pins
100-Pin QFP Package
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 Z8018110FEC |
ZiLOG |
Microprocessors (MPU) 10MHz SMART ACC CONT |
Data Sheet |
Negotiable |
|
||||
|
Z8018110FEC00TR |
|
IC Z180 MPU 100QFP |
Data Sheet |
Negotiable |
|
||||
