Product Summary

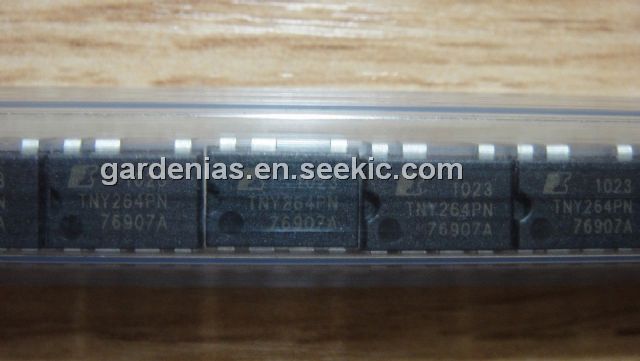

The TNY264PN is an enhanced, energy efficient, low power off-line switcher. It integrates a 700V power MOSFET, oscillator, high voltage switched current source, current limit and thermal shutdown circuitry ont oa monolithic device. The stand-up and operating power are derived directly from the voltage on the drain pin, eliminating the need for a bias winding and associated circuitry.
Parametrics
TNY264PN absolute maximum ratings: (1)Drain voltage: -0.3 to 700V; (2)drain peak current: 400mA; (3)en/uv voltage: -0.3 to 9V; (4)en/uv current: 100mA; (5)bypass voltage: -0.3 to 9V; (6)storage temperature: -65 to 150℃; (7)lead temperature: 260℃.
Features
TNY264PN features: (1)Fully integrated auto-restart for short circuit and open loop fault protection; (2)saves external component costs; (3)Built-in circuitry practically eliminates audible noise with ordinary dip-varnished transformer; (4)Programmable line under-voltage detect feature prevents power on/off glitches; (5)saves external components; (6)Frequency jittering dramatically reduces EMI (10 dB)– minimizes EMI filter component costs.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TNY264PN |
Power Integrations |
AC/DC Switching Converters 6W 85-265 VAC 9W/230 VAC |
Data Sheet |
|
|
|||||||||||||
