Product Summary

The TMP05BKSZ-500RL7 is a accurate PWM temperature sensor that generate a modulated serial digital output (PWM), which varies in direct proportion to the temperature of the devices. The high period (TH) of the PWM remains static over all temperatures, while the low period (TL) varies. The applications of the TMP05BKSZ-500RL7 include Isolated sensors, Environmental control systems, Computer thermal monitoring, Thermal protection, Industrial process control, Power-system monitors.

Parametrics

TMP05BKSZ-500RL7 absolute maximum ratings: (1)VDD to GND: -0.3 to 7V; (2)Digital input voltage to GND: -0.3 to VDD+0.3V; (3)Maximum output current: ±10mA; (4)Operating temperature range: -40 to 150℃; (5)storage temperature range: -65 to 160℃.

Features

TMP05BKSZ-500RL7 features: (1)Modulated serial digital output, proportional to temperature; (2)±0.5°C typical accuracy at 25°C; (3)±1.0°C accuracy from 0°C to 70°C; (4)Two grades available; (5)Operation from -40°C to +150°C; (6)Operation from 3 V to 5.5 V; (7)Power consumption 70 μW maximum at 3.3 V; (8)CMOS-/TTL-compatible output on TMP05; (9)Flexible open-drain output on TMP06; (10)Small, low cost, 5-lead SC-70 and SOT-23 packages.

Diagrams

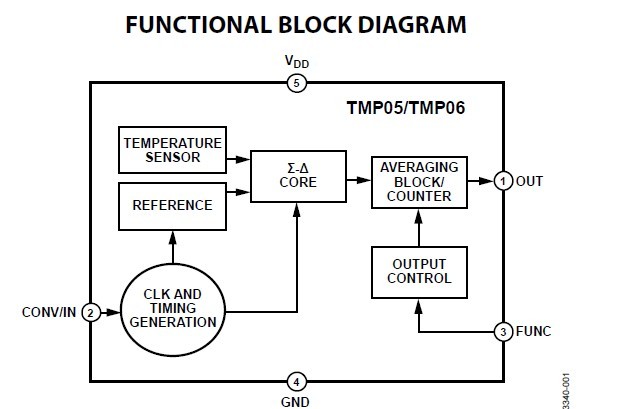

TMP05BKSZ-500RL7 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TMP05BKSZ-500RL7
TMP05BKSZ-500RL7


IC PWM TEMP SNSR CMOS/TTL SC70-5

Data Sheet

0-1: $1.67
1-10: $1.51
10-25: $1.35
25-100: $1.22
100-250: $1.08
