Product Summary

The TIC246M is a silicon triacs.

Parametrics

TIC246M absolute maximum ratings: (1)repetitive peak off-state voltage: 400V; (2)full-cycle RMS on-state current at 70℃ case temperature: 16A; (3)peak on-state surge current full-sine-wave at 25℃ case temperature: 125A; (4)peak gate current: ±1A; (5)storage temperature range: -40 to 125℃; (5)lead temperature 1.6mm from case for 10 seconds: 230℃.

Features

TIC246M features: (1)high current triacs; (2)16A RMS; (3)Glass passivated wafer; (4)400V to 800V off-state voltage; (5)125A peak current; (6)Max IGT of 50mA.

Diagrams

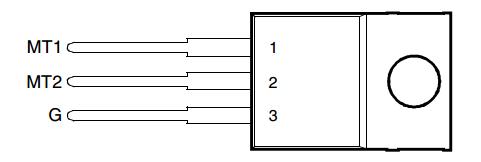

TIC246M diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TIC246M-S
TIC246M-S
Bourns
Triacs 600V 16A TRIAC
Data Sheet
0-5990: $0.87
5990-15000: $0.78
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TIC201D-S
TIC201D-S
Bourns
Triacs 400V 2.5A TRIAC
Data Sheet
0-11920: $0.44
11920-15000: $0.39
TIC201S-S
TIC201S-S
Bourns
Triacs 700V 2.5A TRIAC
Data Sheet
0-11940: $0.52
11940-15000: $0.47
TIC206D-S
TIC206D-S
Bourns
Triacs 400V 4A TRIAC
Data Sheet
0-11970: $0.49
11970-15000: $0.44
TIC206M-S
TIC206M-S
Bourns
Triacs 600V 4A TRIAC
Data Sheet
0-11940: $0.56
11940-15000: $0.50
TIC225D-S
TIC225D-S
Bourns
Triacs 400V 8A TRIAC
Data Sheet
0-5990: $0.53
5990-15000: $0.48
TIC225N-S
TIC225N-S
Bourns
Triacs 800V 6A TRIAC
Data Sheet
0-5990: $0.70
5990-15000: $0.63
