Product Summary

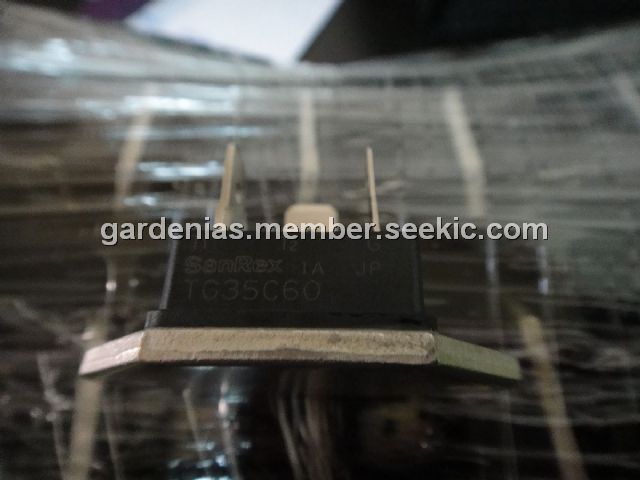

The TG35C60 is an isolated molded triac suitable for wide range of applications like copier, microwave oven, solid state switch, motor control, light control and heater control.
Parametrics
TG35C60 absolute maximum ratings: (1)Repetitive Peak Off-State Voltage: 600V; (2)R.M.S. On-State Current: 35A; (3)Surge On-State Current: 300/330A; (4)I2t: 450A2s; (5)Peak Gate Power Dissipation: 10W; (6)Average Gate Power Dissipation: 1W; (7)Peak Gate Current: 3A; (8)Peak Gate Voltage: 10V; (9)Critical Rate of Rise of On-State Current: 50A/us; (10)Operating Junction Temperature: -25℃ to +125℃; (11)Storage Temperature: -25℃ to +125℃; (12)Isolation Breakdown Voltage(R.M.S.): 2500V.
Features
TG35C60 features: (1) IT (AV):35A; (2) High surge capability: 330A; (3) Isolated Nounting (AC2500V); (4) Tab Terminals.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TG35C60 |
Other |
|
Data Sheet |
Negotiable |
|
||||
