Product Summary

The RS1A is a surface mount fast switching rectifier.

Parametrics

RS1A absolute maximum ratings: (1)maximum recurrent peak reverse voltage: 50V; (2)Maximum RMS voltage: 35V; (3)maximum DC blocking voltage: 50V; (4)Maximum average forward rectified current: 1A; (5)peak forward surge current: 30A; (6)maximum DC reverse current: 5A.

Features

RS1A features: (1)For surface mounted applications; (2)Low profile package; (3)Built-in strain relief; (4)Easy pick and place; (5)Fast recovery times for high efficiency; (6)Plastic package has Underwriters Laboratory Flammability Classification 94V-O; (7)Glass passivated chip junction; (8)High temperature soldering: 260mJ /10 seconds at terminals.

Diagrams

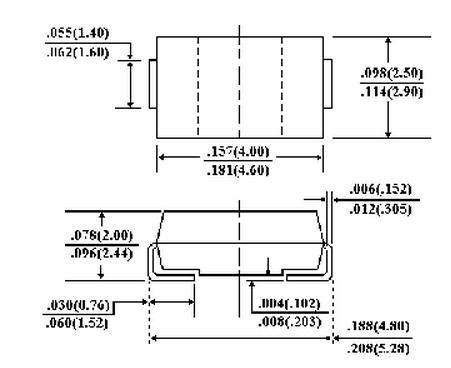

RS1A diagram
