Product Summary

The RL1210JR-070R22L is a thick film chip resistor. It can be used for televisions, audio recorders, notebook computers, battery chargers, desktop computers and telecommunication equipment.

Parametrics

RL1210JR-070R22L absolute maximum ratings: (1)Power rating: 1/3W; (2)max working voltage: 200V; (3)max overload voltage: 400V; (4)TCR: ±1500ppm/℃; (5)rated working temperature: -55 to 155℃.

Features

RL1210JR-070R22L features: (1)Low Inductance; (2)Battery Charge Current Sensing; (3)Highly Reliable Multilayer Electrode Construction; (4)Higher Component and Equipment Reliability; (5)Excellent Performance at High Frequency; (6)Reduced Size of Final Equipment; (7)RoHS Compliant.

Diagrams

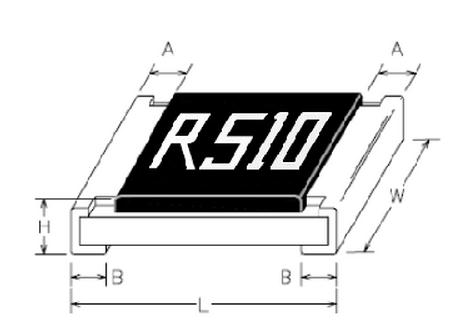

RL1210JR-070R22L diagram
