Product Summary

The MMBTH10LT1G is a VHF/UHF transistor.

Parametrics

MMBTH10LT1G absolute maximum ratings: (1)collector-emitter voltage: 25Vdc; (2)collector-base voltage: 30Vdc; (3)emitter-base voltage: 3Vdc.

Features

MMBTH10LT1G features: (1)AEC-Q101 Qualified and PPAP Capable; (2)NSV Prefix for Automotive and Other Applications Requiring; (3)Unique Site and Control Change Requirements; (4)These Devices are Pb?Free, Halogen Free/BFR Free and are RoHS Compliant.

Diagrams

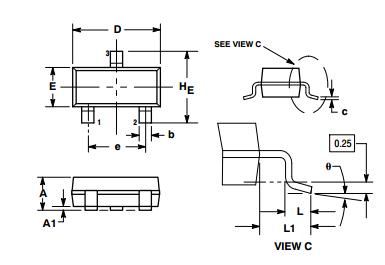

MMBTH10LT1G diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

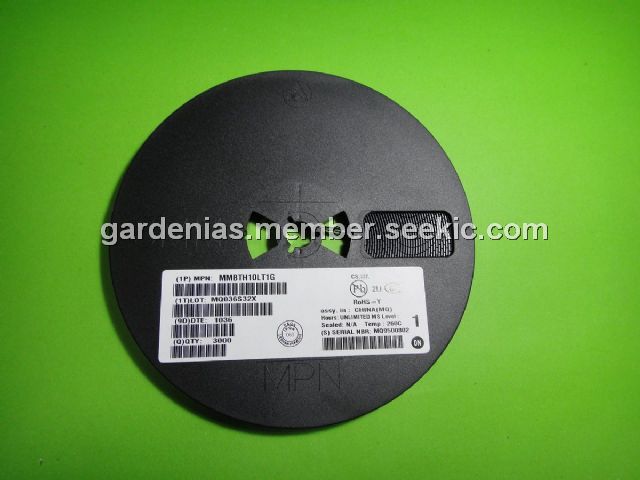

MMBTH10LT1G
MMBTH10LT1G
ON Semiconductor
Transistors Bipolar (BJT) 25V VHF Mixer NPN
Data Sheet
0-1: $0.18
1-25: $0.13
25-100: $0.06
100-500: $0.05
