Product Summary

The LVR016K is a line-voltage-rate device. The LVR016K helps protect electric motors and transformers used in commercial and home appliances from damage caused by mechanical overloads, overheating, stall, lost neutral and other potentially harmful conditions. The LVR line-voltage product line of polymeric positive temperature coefficient (PPTC) devices includes components that are rated for line voltages of 120VAC and 240VAC, for up to 2A of operating current at 20°C. They help protect against damage caused by both overcurrent surges and overtemperature faults, offer low resistance, and are compatibly sized with fuse solutions. Its applications include electromagnetic loads, loudspeakers.

Parametrics

LVR016K absolute maximum ratings: (1)operating current: 50mA to 2A; (2)Line voltage: 120V.

Features

LVR016K features: (1)RoHS compliant; (2)broadest range of radial-leaded resettable devices available in the industry; (3)current ratings from 50mA to 2A; (4)line voltage rating of 120V; (5)agency recognition: UL, CSA, TUV; (6)Fast time-to-trip.

Diagrams

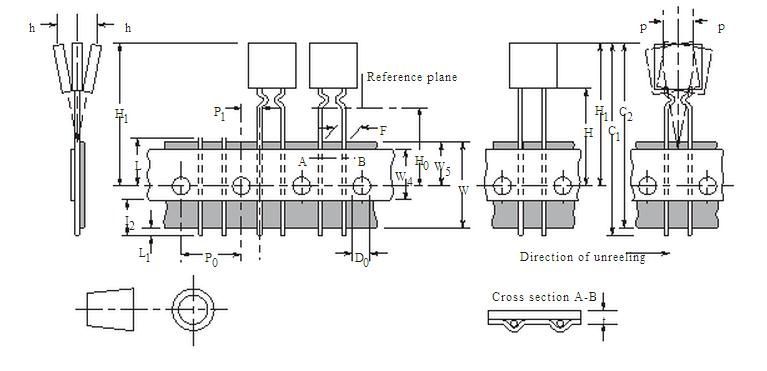

LVR016K diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LVR016K
LVR016K
TE Connectivity / Raychem
PTC Resettable Fuses .16A 240VAC 20/2A Imax
Data Sheet
0-1: $0.28
1-10: $0.25
10-100: $0.23
100-500: $0.21
LVR016K-2
LVR016K-2
TE Connectivity / Raychem
PTC Resettable Fuses 265V 24AWG Lead.16A
Data Sheet
0-1: $0.30
1-10: $0.28
10-100: $0.25
100-500: $0.23
