Product Summary

The DDB6U144N16R is a diode bridge.

Parametrics

DDB6U144N16R absolute maximum ratings: (1)repetitive peak reverse voltage: 1600V; (2)non-repetitive peak reverse voltage: 1500V; (3)RMS forward current: 145A; (4)output current: 173A.

Features

DDB6U144N16R features: (1)forward voltage: 1.65V; (2)threshold voltage: 0.75V; (3)forward slope resistance: 3.1mW; (4)reverse current: 5mA; (5)insulation test voltage: 3kV.

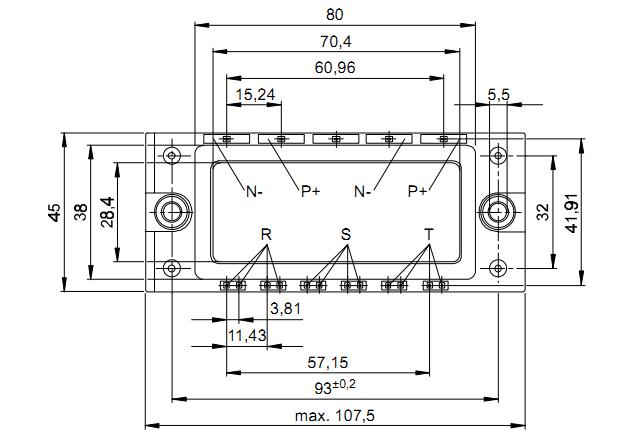

Diagrams

DDB6U144N16R

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DDB6U144N16R
DDB6U144N16R
Infineon Technologies
Discrete Semiconductor Modules 1600V 145A UN-CNTL
Data Sheet
0-15: $46.72
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DDB6U100N12R
DDB6U100N12R
Infineon Technologies
Discrete Semiconductor Modules 1200V 100A UN-CNTL
Data Sheet
0-1: $35.64
1-10: $31.68
DDB6U100N12RR
DDB6U100N12RR
Infineon Technologies
Discrete Semiconductor Modules 1200V 100A UN-CNTL
Data Sheet
0-1: $50.16
1-10: $44.88
DDB6U100N16R
DDB6U100N16R
Infineon Technologies
Discrete Semiconductor Modules 1600V 100A UN-CNTL
Data Sheet
0-13: $36.96
DDB6U100N16RR
DDB6U100N16RR
Infineon Technologies
Discrete Semiconductor Modules 1600V 100A UN-CNTL
Data Sheet
0-8: $68.06
8-10: $61.25
DDB6U104N16RR
DDB6U104N16RR
Infineon Technologies
Discrete Semiconductor Modules 1600V 105A UN-CNTL
Data Sheet
0-13: $44.72
DDB6U104N18RR
DDB6U104N18RR
Infineon Technologies
Rectifiers 1.8KV 25A
Data Sheet
0-15: $46.73
