Product Summary
The BTS740S2 is an N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input, diagnostic feedback and proportional load current sense monolithically integrated in Smart SIPMOS technology. The applications of the BTS740S2 include μC compatible high-side power switch with diagnostic feedback for 12V and 24V grounded loads, All types of resistive, inductive and capacitve loads, Most suitable for loads with high inrush currents, so as lamps, Replaces electromechanical relays, fuses and discrete circuits.
Parametrics
BTS740S2 absolute maximum ratings: (1)supply voltage: 43V; (2)Supply voltage for full short circuit protection: 34V; (3)Load current: self-limited; (4)operating temperature range: -40 to 150℃; (5)power dissipation: 3.8W; (6)maximal switchable inductance, single pulse: 18mH; (7)input voltage: -10 to 16V.
Features
BTS740S2 features: (1)operating voltage: 34V; (2)Undervoltage shutdown: 5V; (3)undervoltage restart: 5.5V; (4)Under voltage hysteresis: 0.5V; (5)overvoltage restart: 33V.

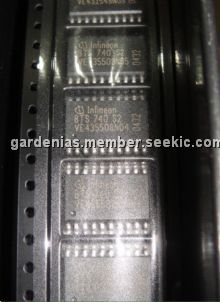

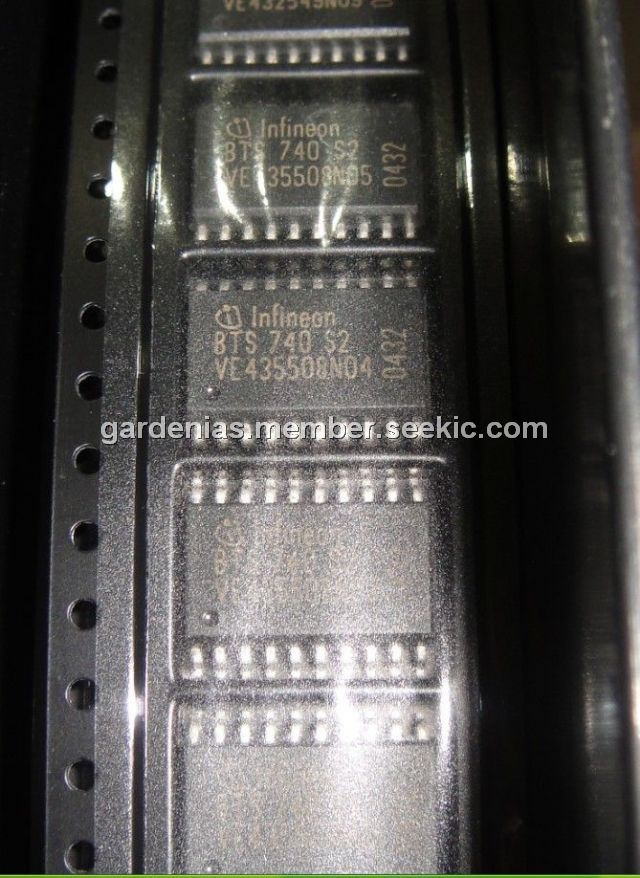

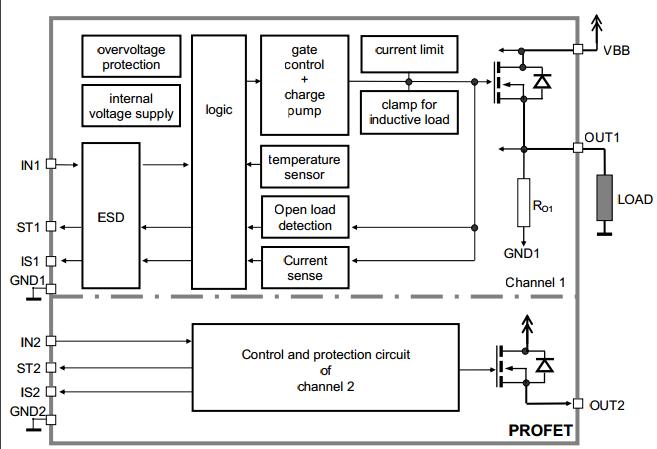

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BTS740S2 |
Infineon Technologies |
Power Switch ICs - POE / LAN SMART HI SIDE PWR SWITCH 2 CHANNELS |
Data Sheet |
|
|
||||||||||||
