Product Summary

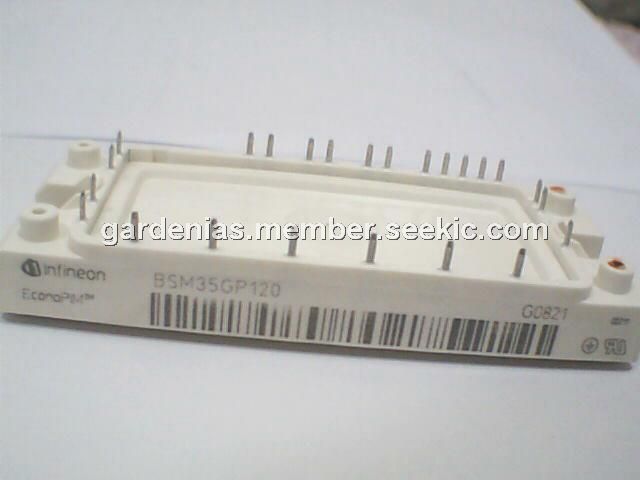

The BSM35GP120 is an IGBT module.
Parametrics
BSM35GP120 absolute maximum ratings: (1)Repetitive peak reverse voltage: 1600V; (2)RMS forward current per chip: 40A; (3)DC forward current: 35A; (4)surge forward current: 315A; (5)collector-emitter voltage: 1200V.
Features
BSM35GP120 features: (1)forward voltage: 12V; (2)threshold voltage: 0.8V; (3)slope resistance: 10.5mΩ; (4)reverse current: 2mA; (5)lead resistance: 5mΩ.

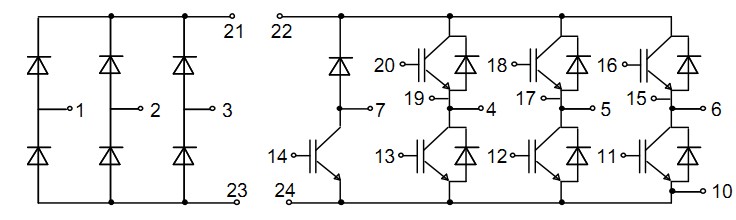

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BSM35GP120 |
Infineon Technologies |
IGBT Modules 1200V 35A PIM |
Data Sheet |
|
|
||||||||
|
BSM35GP120G |
Infineon Technologies |
IGBT Modules 1200V 35A PIM |
Data Sheet |
|
|
||||||||
