Product Summary

The A2982SLWT is an 8-channel source driver. The A2982SLWT is electrically interchangeable, which minimum of 5 V will withstand a maximum output off voltage of 50 V. The A2982SLWT in this series integrates input current limiting resistors and output transient suppression diodes, and are activated by an active high input.

Parametrics

A2982SLWT absolute maximum ratings: (1)Output Voltage Range, VCE: 5 V to 50 V; (2)Input Voltage, VIN: 20 V; (3)Output Current, IOUT: -500 mA; (4)Operating Temperature Range, TA: -20℃ to +85℃; (5)Storage Temperature Range, TS: -55℃ to +150℃.

Features

A2982SLWT features: (1)TTL, DTL, PMOS, or CMOS Compatible Inputs; (2)500 mA Output Source Current Capability; (3)Transient-Protected Outputs; (4)Output Breakdown Voltage to 80 V; (5)DIP or SOIC Packaging.

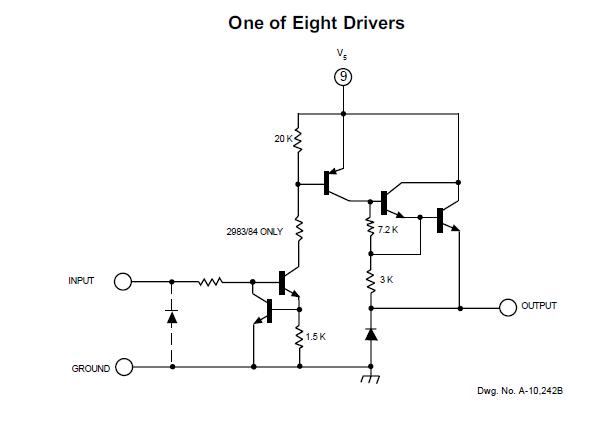

Diagrams

A2982SLWT pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
A2982SLWTR
A2982SLWTR

IC SOURCE DRIVER 8CHAN 20-SOIC
Data Sheet
Negotiable
A2982SLWTR-T
A2982SLWTR-T

IC SOURCE DRIVER 8CHAN 20-SOIC
Data Sheet
0-1: $1.51
1-10: $1.37
10-50: $1.22
50-100: $1.10
100-250: $0.98
250-500: $0.85
500-1000: $0.71
