Product Summary

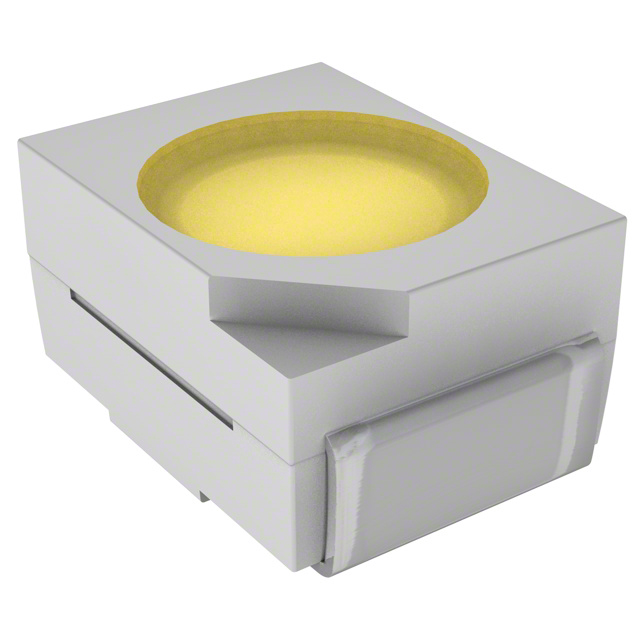

The 67-21VRC/TR8 is a top LED. It is available in soft orange, green,blue and yellow. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium. Its applications include automotive: backlighting in dashaboard and switch, telecommunication: indicator and backlighting in telephone and fax, flat backlight for LCD, switch and symbol.
Parametrics
67-21VRC/TR8 absolute maximum ratings: (1)Reverse voltage: 5V; (2)Forward current: 30mA; (3)operating temperature: -40 to 85℃; (4)storage temperature: -40 to 100℃; (5)electrostatic discharge: 2000V; (6)power dissipation: 100mW; (7)peak forward current: 160mA.
Features
67-21VRC/TR8 features: (1)P-LCC-2 package; (2)White package; (3)Optical indicator; (4)Colorless clear window; (5)Wide viewing angle; (6)Suitable for vapor-phase reflow, Infrared reflow and wave solder processes; (7)Computable with automatic placement equipment; (8)Available on tape and reel (8mm Tape).
