Product Summary

The PIC16F870-I/SP is a 28/40-pin 8-bit CMOS flash microcontroller.

Parametrics

PIC16F870-I/SP absolute maximum ratings: (1)Ambient temperature under bias: -55 to +125℃; (2)Storage temperature: -65 to +150℃; (3)Voltage on any pin with respect to VSS (except VDD, MCLR. and RA4): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3 to +7.5V; (5)Voltage on MCLR with respect to VSS: 0 to +13.25V; (6)Voltage on RA4 with respect to Vss: 0 to +8.5V; (7)Total power dissipation: 1.0W; (8)Maximum current out of VSS pin: 300 mA; (9)Maximum current into VDD pin: 250 mA; (10)Input clamp current, IIK (VI < 0 or VI > VDD): ± 20 mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD): ± 20 mA; (12)Maximum output current sunk by any I/O pin: 25 mA; (13)Maximum output current sourced by any I/O pin: 25 mA; (14)Maximum current sunk by PORTA, PORTB, and PORTE (combined): 200 mA; (15)Maximum current sourced by PORTA, PORTB, and PORTE (combined): 200 mA; (16)Maximum current sunk by PORTC and PORTD (combined): 200 mA; (17)Maximum current sourced by PORTC and PORTD (combined): 200 mA.

Features

PIC16F870-I/SP features: (1)Power-on Reset (POR); (2)Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (3)Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation; (4)Programmable code-protection; (5)Power saving SLEEP mode; (6)Selectable oscillator options; (7)Low-power, high-speed CMOS FLASH/EEPROM technology; (8)Fully static design; (9)In-Circuit Serial Programming(ICSP) via two pins; (10)Single 5V In-Circuit Serial Programming capability; (11)In-Circuit Debugging via two pins; (12)Processor read/write access to program memory; (13)Wide operating voltage range: 2.0V to 5.5V; (14)High Sink/Source Current: 25 mA; (15)Commercial and Industrial temperature ranges.

Diagrams

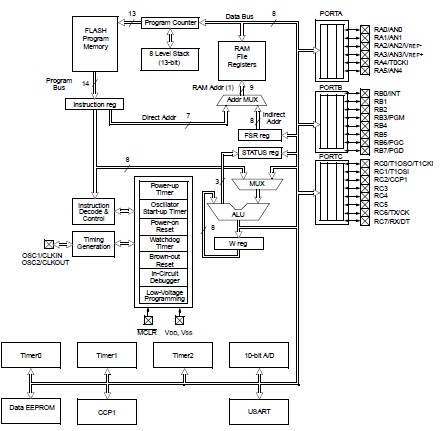

PIC16F870-I/SP block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PIC16F870-I/SP
PIC16F870-I/SP

Microchip Technology

8-bit Microcontrollers (MCU) 3.5KB 128 RAM 22 I/O

Data Sheet

0-1: $2.23
1-10: $1.78
10-25: $1.73
25-100: $1.69
