Product Summary
The L6208 is a DMOS Fully Integrated Stepper Motor
Driver with non-dissipative Overcurrent Protection,
realized in MultiPower-BCD technology, which combines
isolated DMOS Power Transistors with CMOS
and bipolar circuits on the same chip. The device includes
all the circuitry needed to drive a two-phase
bipolar stepper motor including: a dual DMOS Full
Bridge, the constant off time PWM Current Controller
that performs the chopping regulation and the Phase
Sequence Generator, that generates the stepping
sequence. Available in PowerDIP24 (20+2+2),
PowerSO36 and SO24 (20+2+2) packages, the
L6208 features a non-dissipative overcurrent protection
on the high side Power MOSFETs and thermal
shutdown.
Features
n OPERATING SUPPLY VOLTAGE FROM 8 TO 52V
n 5.6A OUTPUT PEAK CURRENT (2.8A RMS)
n RDS(ON) 0.3W TYP. VALUE @ Tj = 25°C
n OPERATING FREQUENCY UP TO 100KHz
n NON DISSIPATIVE OVERCURRENT
PROTECTION
n DUAL INDEPENDENT CONSTANT tOFF PWM
CURRENT CONTROLLERS
n FAST/SLOW DECAY MODE SELECTION
n FAST DECAY QUASI-SYNCHRONOUS
RECTIFICATION
n DECODING LOGIC FOR STEPPER MOTOR
FULL AND HALF STEP DRIVE
n CROSS CONDUCTION PROTECTION
n THERMAL SHUTDOWN
n UNDER VOLTAGE LOCKOUT
n INTEGRATED FAST FREE WHEELING DIODES
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

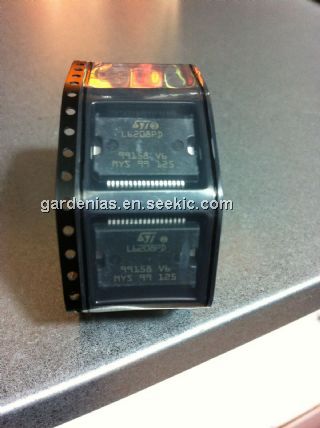

 L6208PD |
STMicroelectronics |
Motor / Motion / Ignition Controllers & Drivers DMOS Stepper Motor |
Data Sheet |
|
|
||||||||||||
|
L6208PD013TR |
STMicroelectronics |
Motor / Motion / Ignition Controllers & Drivers DMOS Stepper Motor |
Data Sheet |
|
|
||||||||||||
