Product Summary

The CA3140EZ is a BiMOS operational amplifier with MOSFET input/bipolar output. Its applications include Ground-Referenced Single Supply Amplifiers in Automobile and Portable Instrumentation, Sample and Hold Amplifiers, Long Duration Timers/Multivibrators (μseconds-Minutes-Hours), Photocurrent Instrumentation, Peak Detectors, Active Filters, Comparators, Interface in 5V TTL Systems and Other Low Supply Voltage Systems, All Standard Operational Amplifier Applications, Function Generators, Tone Controls, Power Supplies, Portable Instruments, Intrusion Alarm Systems.

Parametrics

CA3140EZ absolute maximum ratings: (1)DC supply voltage: 36V; (2)differential mode input voltage: 8V; (3)DC input voltage: V+8V TO V-0.5V; (4)Input terminal current: 1mA; (5)output short circuit duration: indefinite; (6)operating temperature range: -55 to 125℃; (7)junction temperature: 150℃.

Features

CA3140EZ features: (1)MOSFET Input Stage; (2)Output Swing Complements Input Common Mode Range; (2)Directly Replaces Industry Type 741 in Most Applications; (3)Pb-Free Plus Anneal Available (RoHS Compliant).

Diagrams

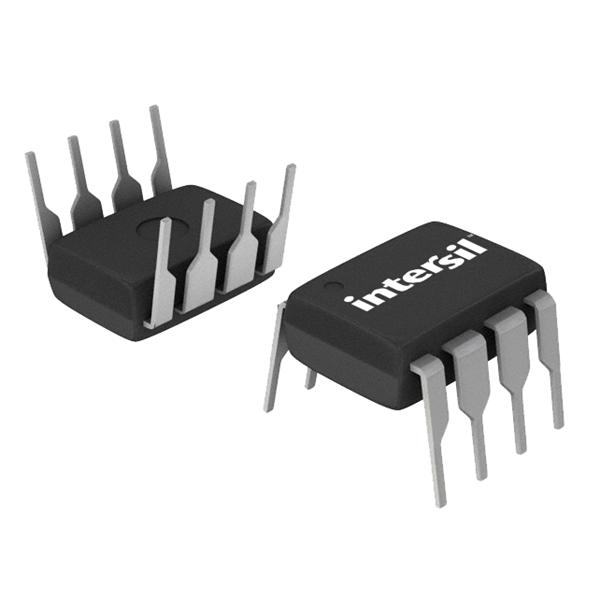

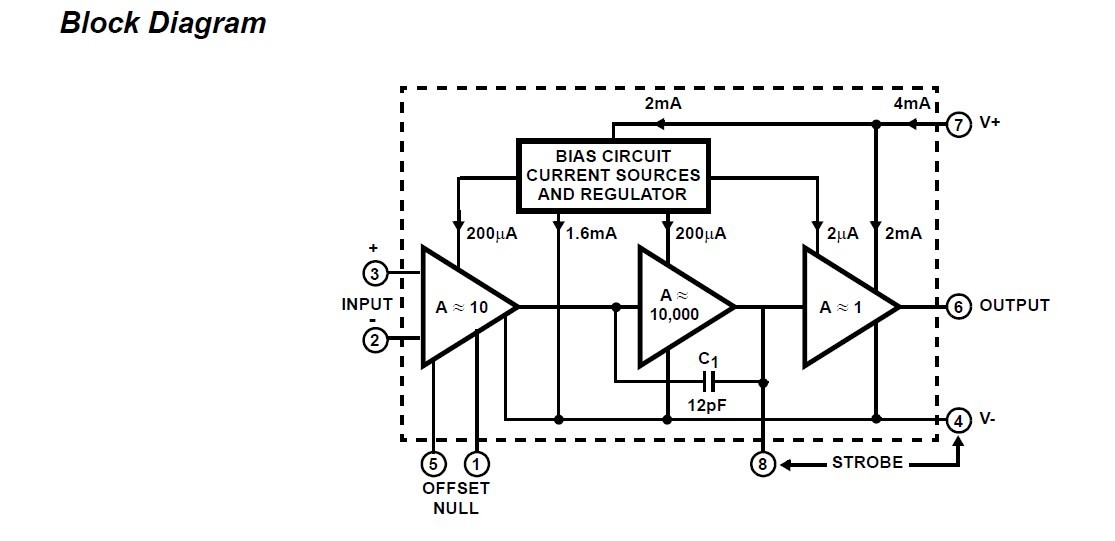

CA3140EZ diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CA3140EZ
CA3140EZ
Intersil
Operational Amplifiers - Op Amps W/ANNEAL OPAMP 4.5MH ZLWBIAS0.04NA8PDIPML
Data Sheet
0-1: $0.87
1-25: $0.61
25-100: $0.60
100-250: $0.56
