Product Summary
The second generation COOLSET?-F2 provides several
special enhancements to satisfy the needs for low power
standby and protection features. In standby mode
frequency reduction is used to lower the power
consumption and support a stable output voltage in this
mode. The frequency reduction is limited to 21.5 kHz to
avoid audible noise. In case of failure modes like open loop,
overvoltage or overload due to short circuit the device
switches in Auto Restart Mode which is controlled by the
internal protection unit. By means of the internal precise
peak current limitation the dimension of the transformer and
the secondary diode can be lower which leads to more cost
efficiency.
Features
650V/800V Avalanche Rugged CoolMOS?
Only few external Components required
Input Undervoltage Lockout
100kHz Switching Frequency
Max Duty Cycle 72%
Low Power Standby Mode to meet European
commission Requirements
Thermal Shut Down with Auto Restart
Overload and Open Loop Protection
Overvoltage Protection during Auto Restart
Adjustable Peak Current Limitation via
External Resistor
Overall Tolerance of Current Limiting < ±5%
Internal Leading Edge Blanking
User defined Soft Start
Soft Switching for Low EMI
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

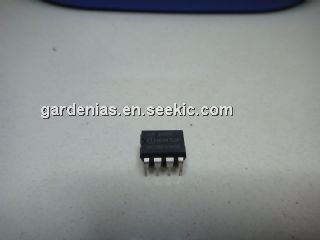

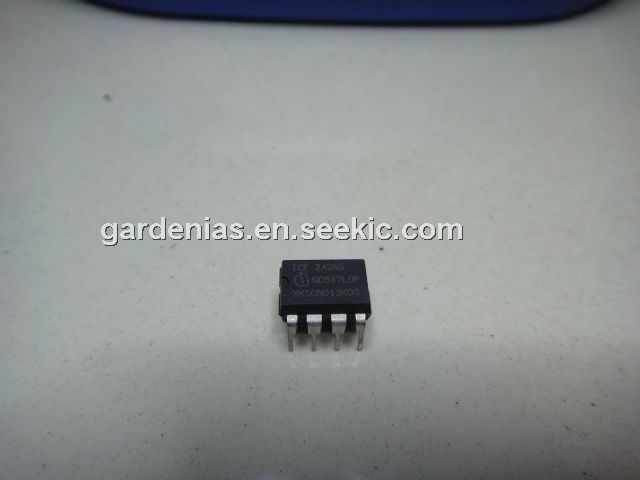

 ICE2A265 |
Infineon Technologies |
Primary & Secondary Side PWM Controllers COOLSET IC CUR-MODE PWM CTRLR 650V |
Data Sheet |
|
|
||||||||||||
 |
ICE2A265Z |
Infineon Technologies |
Primary & Secondary Side PWM Controllers COOLSET IC CUR-MODE PWM CTRLR 650V |
Data Sheet |
Negotiable |
|
||||||||||||
